RU30100L Datasheet, Mosfet, Ruichips

RU30100L Features

  • Mosfet
  • 30V/100A, RDS (ON) =2.2 mΩ(Typ.)@VGS=10V RDS (ON) =4 mΩ(Typ.)@VGS=4.5V
  • Super High Dense Cell Design
  • Ultra Low On-Resistance
  • 100% avalanche tested

PDF File Details

Part number:

RU30100L

Manufacturer:

Ruichips

File Size:

292.39kb

Download:

📄 Datasheet

Description:

N-channel advanced power mosfet. TO-252 Applications

  • High Frequency Synchronous Buck Converters for Computer Processor Power
  • DC-DC Converters N-

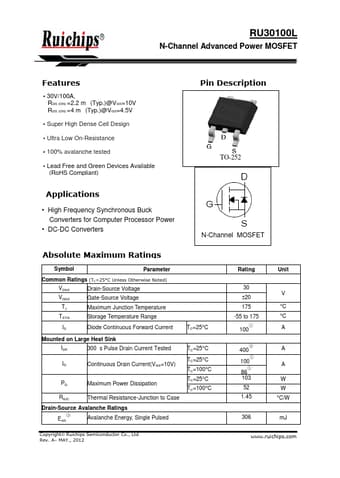

  • Datasheet Preview: RU30100L 📥 Download PDF (292.39kb)
    Page 2 of RU30100L Page 3 of RU30100L

    RU30100L Application

    • Applications
    • High Frequency Synchronous Buck Converters for Computer Processor Power
    • DC-DC Converters N-Channel MOSFET Absolut
