RU30106L

N-Channel Advanced Power MOSFET

RU30106L Features

* 30V/130A, RDS (ON) =2.5mΩ(Typ.)@VGS=10V RDS (ON) =5mΩ(Typ.)@VGS=4.5V

* Super High Dense Cell Design

* Ultra Low On-Resistance

* 100% avalanche tested

* Lead Free and Green Devices Available (RoHS Compliant) Pin Description TO-252 Applications

* Hig

RU30106L General Description

TO-252 Applications

* High Frequency Synchronous Buck Converters for Computer Processor Power

* DC-DC Converters N-Channel MOSFET Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ.

RU30106L Datasheet (292.27 KB)

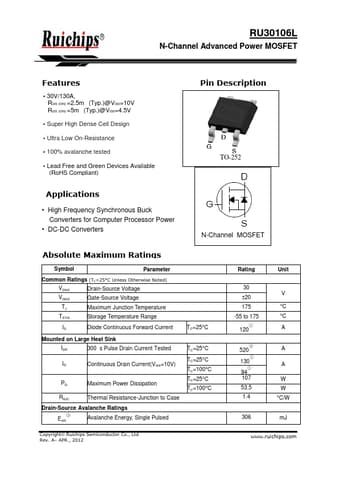

Preview of RU30106L PDF

Datasheet Details

Part number:

RU30106L

Manufacturer:

Ruichips

File Size:

292.27 KB

Description:

N-channel advanced power mosfet.
