RU3089L Datasheet, Mosfet, Ruichips

RU3089L Features

  • Mosfet
  • 30V/89A, RDS (ON) =3.8mΩ (Typ.)@VGS=10V RDS (ON) =5mΩ (Typ.)@VGS=4.5V
  • Super High Dense Cell Design
  • Ultra Low On-Resistance
  • 100% avalanche tested

PDF File Details

Part number:

RU3089L

Manufacturer:

Ruichips

File Size:

290.64kb

Download:

📄 Datasheet

Description:

N-channel advanced power mosfet. TO-252 N-Channel MOSFET Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDSS Drain-S

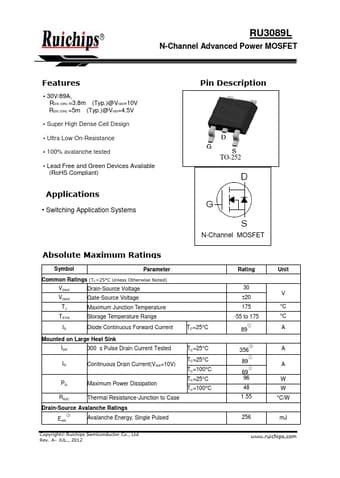

Datasheet Preview: RU3089L 📥 Download PDF (290.64kb)
Page 2 of RU3089L Page 3 of RU3089L

RU3089L Application

  • Applications
  • Switching Application Systems Pin Description TO-252 N-Channel MOSFET Absolute Maximum Ratings Symbol Parameter Common
