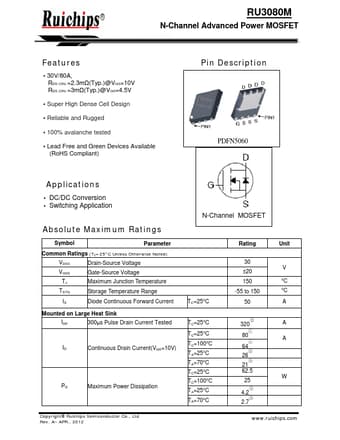

RU3080M Datasheet, Mosfet, Ruichips

RU3080M Features

• Mosfet
• 30V/80A, RDS (ON) =2.3mΩ(Typ.)@VGS=10V RDS (ON) =3mΩ(Typ.)@VGS=4.5V
• Super High Dense Cell Design
• Reliable and Rugged
• 100% avalanche tested
<

PDF File Details

Part number:

RU3080M

Manufacturer:

Ruichips

File Size:

302.29kb

Download:

📄 Datasheet

Description:

N-channel advanced power mosfet. PDFN5060 Applications

DC/DC Conversion

Switching Application Absolute Maximum Ratings Symbol Parameter Commo

RU3080M Application

• Applications
• DC/DC Conversion
• Switching Application Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless
