SCT9339 3A Synchronous Step-down DCDC Converter

SILICON CONTENT TECHNOLOGY SCT9339 3.8V-28V Vin, 3A Synchronous Step-down DCDC Converter with EMI Reduction .
The SCT9339 is 3A synchronous buck converters with up to 28V wide input voltage range, which fully integrates an 85mΩ high-side MOSFET and a 48mΩ low-.

SCT9339-SCT.pdf

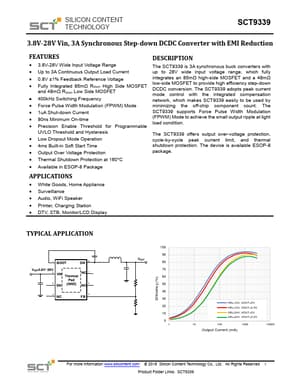

SCT9339 Datasheet Preview — Preview of SCT9339 PDF

Datasheet Details

Part number:

SCT9339

Manufacturer:

SCT

File Size:

935.32 KB

Description:

3A Synchronous Step-down DCDC Converter

Features

* 3.8V-28V Wide Input Voltage Range
* Up to 3A Continuous Output Load Current
* 0.8V ±1% Feedback Reference Voltage
* Fully Integrated 85mΩ Rdson High Side MOSFET and 48mΩ Rdson Low Side MOSFET
* 400kHz Switching Frequency
* Force Pulse Width Modulatio

Applications

* White Goods, Home Appliance
* Surveillance
* Audio, WiFi Speaker
* Printer, Charging Station
* DTV, STB, Monitor/LCD Display TYPICAL APPLICATION 1 BOOT SW 8 VIN=3.8V~28V 2 VIN Thermal NC 7 Pad 3 EN (GND) NC 6 4 NC 5 FB VOUT Efficiency (%) 100 90 80
