SW80N08B Datasheet, Mosfet, SEMIPOWER

SW80N08B Features

  • Mosfet TO-220
  • High ruggedness
  • RDS(ON) (Max8.5mΩ)@VGS=10V
  • Gate Charge (Typical 72nC)
  • Improved dv/dt Capability
  • 100% Avalanche Tested 12 3 1.

PDF File Details

Part number:

SW80N08B

Manufacturer:

SEMIPOWER

File Size:

658.95kb

Download:

📄 Datasheet

Description:

Mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri

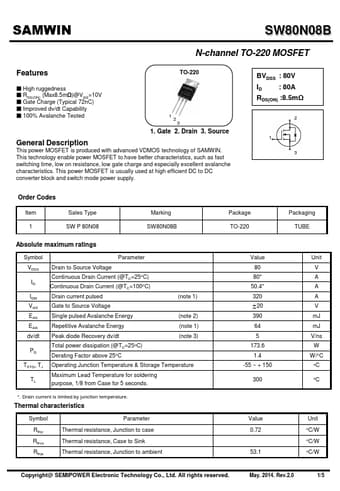

Datasheet Preview: SW80N08B 📥 Download PDF (658.95kb)
Page 2 of SW80N08B Page 3 of SW80N08B
