SW840 Datasheet, Mosfet, SAMWIN

SW840 Features

  • Mosfet N-Channel MOSFET BVDSS (Minimum) RDS(ON) (Maximum) ID Qg (Typical) PD (@TC=25 ) : 500 V : 0.85 ohm : 8.5 A : 36 nc : 125 W SW840 This power MOSFET is produced with advanced VDMOS proce

PDF File Details

Part number:

SW840

Manufacturer:

SAMWIN

File Size:

269.54kb

Download:

📄 Datasheet

Description:

N-channel mosfet. Features N-Channel MOSFET BVDSS (Minimum) RDS(ON) (Maximum) ID Qg (Typical) PD (@TC=25 ) : 500 V : 0.85 ohm : 8.5 A : 36 nc : 125 W

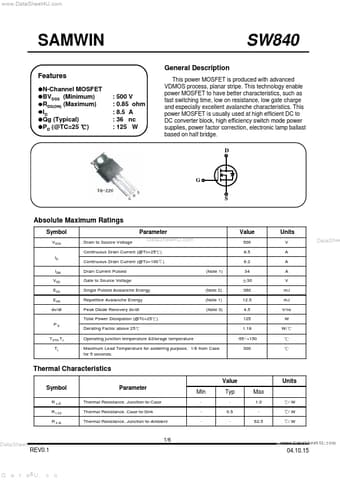

Datasheet Preview: SW840 📥 Download PDF (269.54kb)
Page 2 of SW840 Page 3 of SW840
