SW830A Datasheet, Mosfet, SAMWIN

SW830A Features

  • Mosfet
  • High ruggedness
  • RDS(ON) (Max 1.5 Ω)@VGS=10V
  • Gate Charge (Typ 19nC)
  • Improved dv/dt Capability
  • 100% Avalanche Tested TO-220F TO-220 BV

PDF File Details

Part number:

SW830A

Manufacturer:

SAMWIN

File Size:

827.97kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri

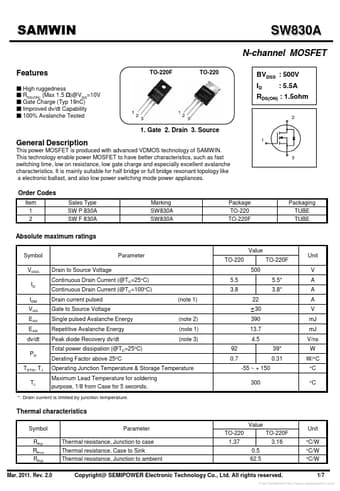

Datasheet Preview: SW830A 📥 Download PDF (827.97kb)
Page 2 of SW830A Page 3 of SW830A
