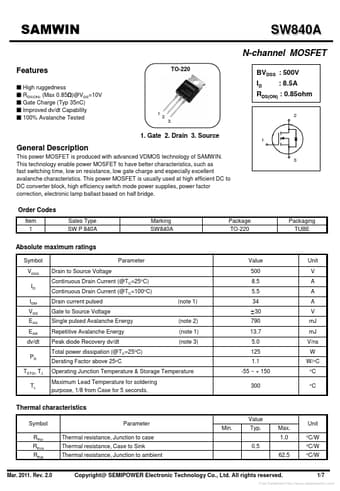

SW840A Datasheet, Mosfet, SAMWIN

✔ SW840A Features

High ruggedness
RDS(ON) (Max 0.85Ω)@VGS=10V
Gate Charge (Typ 35nC)
Improved dv/dt Capability
100% Avalanche Tested TO-220 SW840A N-channel MOSFET BVDSS : 500V

PDF File Details

SAMWIN manufacturer logo

Part number:

SW840A

Manufacturer:

SAMWIN

File Size:

723.22kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri

📥 Download PDF (723.22kb)
