SW8N90

N-channel TO-220F MOSFET

SEMIPOWER

SW8N90 Features

* High ruggedness

* RDS(ON) (Max 1.5 Ω)@VGS=10V

* Gate Charge (Typical 57nC)

* Improved dv/dt Capability

* 100% Avalanche Tested SW8N90 N-channel TO-220F MOSFET TO-220F BVDSS : 900V ID : 8.0A RDS(ON) : 1.5ohm 1 2 3 2 1. Gate 2. Drain 3. Source General Description This pow

SW8N90 General Description

This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteristics, such as fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics. This power MOSFET is usually used at high ef.

SW8N90 Datasheet (399.59 KB)

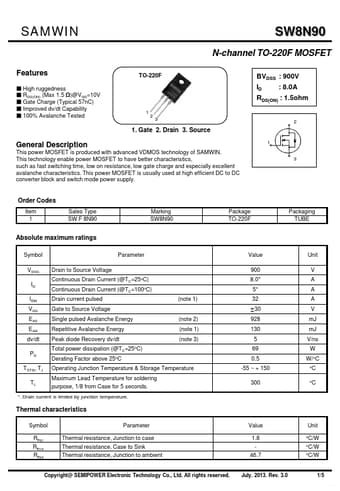

SW8N90 Datasheet Preview — Preview of SW8N90 PDF

Datasheet Details

Part number:

SW8N90

Manufacturer:

SEMIPOWER

File Size:

399.59 KB

Description:

N-channel to-220f mosfet.
