SW8N65D Datasheet, Mosfet, Samwin

SW8N65D Features

• Mosfet TO-220 TO-251 TO-252 TO-220F TO-251NX
• High ruggedness
• Low RDS(ON) (Typ 1.1Ω)@VGS=10V
• Low Gate Charge (Typ 32nC)
• Improved dv/dt Capability

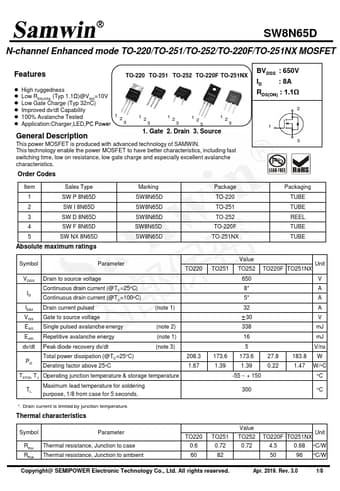

PDF File Details

Part number:

SW8N65D

Manufacturer:

Samwin

File Size:

1.14MB

Download:

📄 Datasheet

Description:

N-channel mosfet. 1. Gate 2. Drain 3. Source This power MOSFET is produced with advanced technology of SAMWIN. This technology enable the power MOSF
