SW8N65DB Datasheet, Mosfet, Samwin

SW8N65DB Features

  • Mosfet TO-251 TO-252 TO-220F TO-262N
  • High ruggedness
  • Low RDS(ON) (Typ 1.0Ω)@VGS=10V
  • Low Gate Charge (Typ 34nC)
  • Improved dv/dt Capability

PDF File Details

Part number:

SW8N65DB

Manufacturer:

Samwin

File Size:

1.04MB

Download:

📄 Datasheet

Description:

N-channel mosfet. 1. Gate 2. Drain 3. Source This power MOSFET is produced with advanced technology of SAMWIN. This technology enable the power MOSF

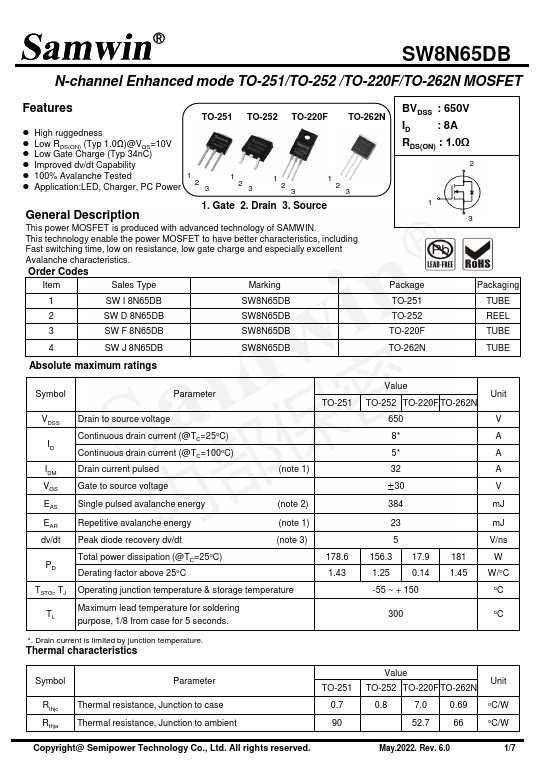

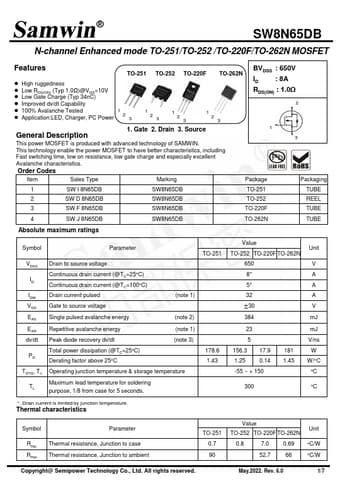

Datasheet Preview: SW8N65DB 📥 Download PDF (1.04MB)

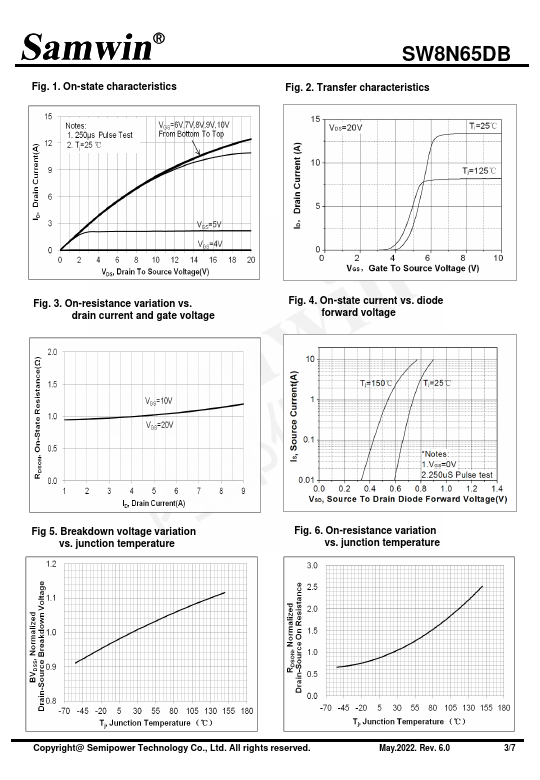

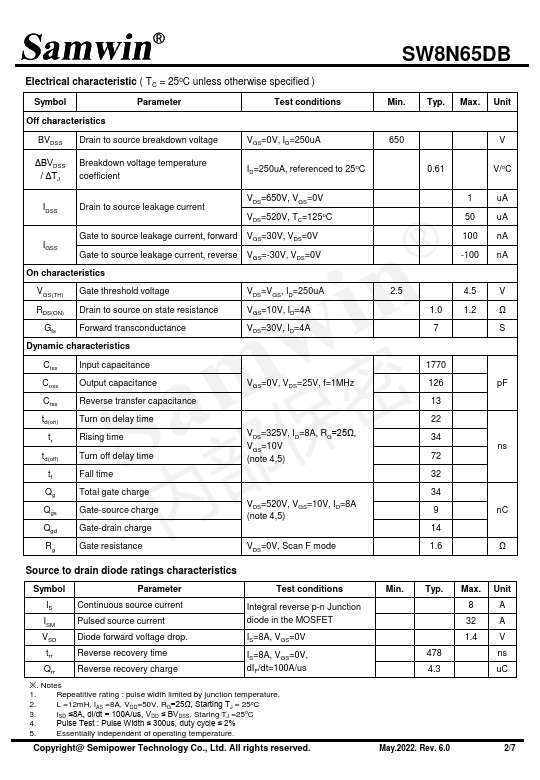

Page 2 of SW8N65DB Page 3 of SW8N65DB
