SGM2040

Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulator

SGM2040 Features

* include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2040 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2040 is available in Green SOT-23-5 and UTDFN-1×1-4AL packages. It operates over an operating tem

SGM2040 General Description

The SGM2040 is an ultra-low current consumption, low dropout voltage and high accuracy linear regulator. It is capable of supplying 250mA output current with only 1μA (TYP) current consumption. The typical dropout voltage is only 60mV at 100mA. The operating input voltage range is from 1.7V to 7.5V .

SGM2040 Datasheet (847.39 KB)

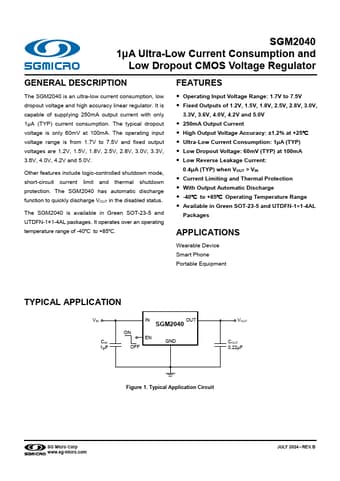

Preview of SGM2040 PDF

Datasheet Details

Part number:

SGM2040

Manufacturer:

SG Micro

File Size:

847.39 KB

Description:

Ultra-low current consumption and low dropout cmos voltage regulator.
