SGM2048, Low Dropout Linear Regulator

ADVANCE DATASHEET SGM2048 1A, Low Noise, Wide Bandwidth, High PSRR, Low Dropout Linear Regulator GENERAL .
FEATURES The SGM2048 is a single output low dropout voltage. 1A Low Dropout Regulator with Enable regulator (LDO) designed for applications re.

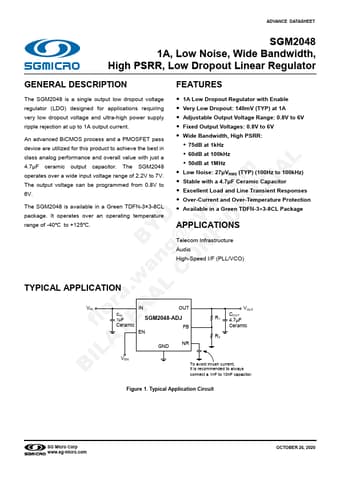

datasheet Preview Page 1 from Datasheet4u.com

SGM2048-SGMicro.pdf

SGM2048 Datasheet Preview — Preview of SGM2048 PDF

Datasheet Details

Part number:

SGM2048

Manufacturer:

SG Micro

File Size:

576.84 KB

Description:

Low Dropout Linear Regulator

Features

* The SGM2048 is a single output low dropout voltage

Applications

* requiring
* Very Low Dropout: 140mV (TYP) at 1A very low dropout voltage and ultra-high power supply
* Adjustable Output Voltage Range: 0.8V to 6V ripple rejection at up to 1A output current.
* Fixed Output Voltages: 0.8V to 6V An advanced BiCMOS process and a PMOSFET pass
* Wide
