SGM41283, 70V Boost Converter

SGM41283 70V Boost Converter with APD Current Monitor GENERAL .
The SGM41283 is a high voltage non-synchronous Boost converter which integrates a 70V, 600mΩ, N-channel power FET and is capable of up to 1.

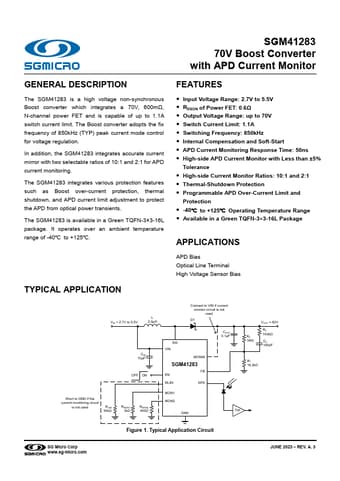

datasheet Preview Page 1 from Datasheet4u.com

SGM41283-SGMicro.pdf

SGM41283 Datasheet Preview — Preview of SGM41283 PDF

Datasheet Details

Part number:

SGM41283

Manufacturer:

SG Micro

File Size:

1.84 MB

Description:

70V Boost Converter

Applications

* APD Bias Optical Line Terminal High Voltage Sensor Bias VIN = 2.7V to 5.5V L 2.0μH CIN 10μF OFF ON Short to GND if the current monitoring circuit is not used RLIM 30kΩ RMON1 2kΩ RMON2 400Ω Connect to VIN if current monitor circuit is not used D1 SW VIN MONIN SGM41283 FB EN RLIM APD COUT
