SGM41101 Datasheet, Protector, SG Micro

SGM41101 Features

• Protector include charging and discharging protection, detection and protection of a cell in over-charging, over-discharging, over-current, and battery under-voltage. The product also disconnects

PDF File Details

Part number:

SGM41101

Manufacturer:

SG Micro

File Size:

837.82kb

Download:

📄 Datasheet

Description:

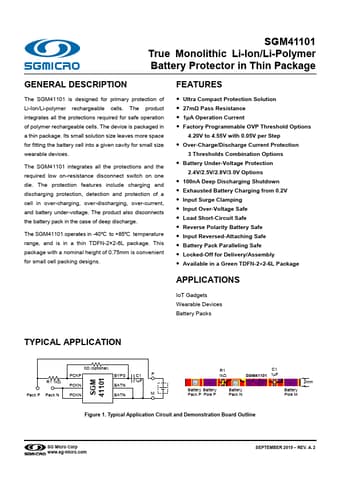

True monolithic li-ion/li-polymer battery protector. The SGM41101 is designed for primary protection of Li-Ion/Li-polymer rechargeable cells. The product integrates all the protections r

SGM41101 Application

• Applications IoT Gadgets Wearable Devices Battery Packs TYPICAL APPLICATION 0Ω (optional) PCKP BYPS C1 P R1 1kΩ PCKN 1μF BATN SGM 41101 Pa
