SGM41102A, SGM41102 - True Monolithic Li-Ion/Polymer Battery Protector

SG Micro

📥 Download Datasheet

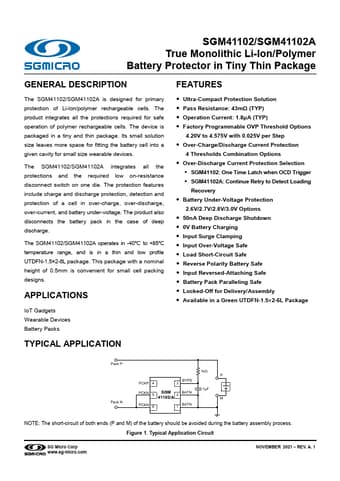

SGM41102A Datasheet Preview — This datasheet PDF includes multiple part numbers: SGM41102A, SGM41102. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SGM41102A, SGM41102
Manufacturer	SG Micro
File Size	1.04 MB
Description	True Monolithic Li-Ion/Polymer Battery Protector
Datasheet	SGM41102-SGMicro.pdf
Note	This datasheet PDF includes multiple part numbers: SGM41102A, SGM41102. Please refer to the document for exact specifications by model.

SGM41102A Product details

Description

The SGM41102/SGM41102A is designed for primary protection of Li-Ion/polymer rechargeable cells.

Features

include charge and discharge protection, detection and protection of a cell in over-charge, over-discharge, over-current, and battery under-voltage. The product also disconnects the battery pack in the case of deep discharge. The SGM41102/SGM41102A operates in -40℃ to +85℃ temperature range, and is in a thin and low profile UTDFN-1.5×2-6L package. This package with a nominal height of 0.5mm is convenient for small cell packing designs.
