SGM41296

1.5A Thermoelectric Cooler Driver

SGM41296 Features

* such as over-current, over-voltage and over-temperature, and an internal 2 stage soft-start circuit are also provided by this device. Requiring a minimal number of external components and with a tiny TQFN package, the SGM41296 offers the minimum solution size for TEC applications. It is an ideal cho

SGM41296 General Description

The SGM41296 is an I2C programmable monolithic driver with integrated power MOSFETs for thermoelectric cooling devices (TEC). It can deliver 1.5A to the TEC continuously, from a 2.7V to 5.5V source over the TEC operating voltage range. The TEC voltage is linearly controlled by an analog input voltag.

SGM41296 Datasheet (2.13 MB)

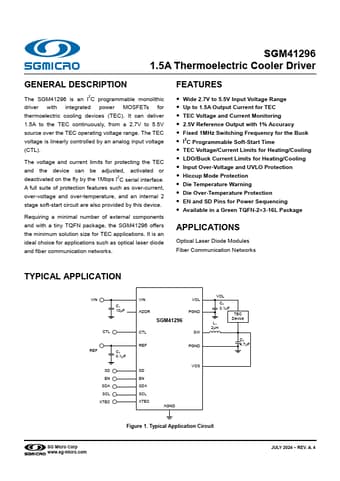

Preview of SGM41296 PDF

Datasheet Details

Part number:

SGM41296

Manufacturer:

SG Micro

File Size:

2.13 MB

Description:

1.5a thermoelectric cooler driver.
