SGM48000

Dual Power MOSFET Drivers

SGM48000 Features

* Improved Response Times

* Matched Rise and Fall Times

* Reduced Clock Skew between Dual Channels

* Low Output Impedance

* Output is at LOW under UVLO Protection

* High Noise Immunity

* Improved Clocking Rate

* Low Supply Current

* Wide Operating Voltage Range

SGM48000 General Description

The SGM48000/1/2 series are dual-channel low-side drivers with typical 2A source and sink current capability. Inverting and non-inverting inputs are both available and three combinations can be chosen for flexible logic application. The rise time and fall time of SGM48000/1/2 are matched to be 12ns .

SGM48000 Datasheet (592.25 KB)

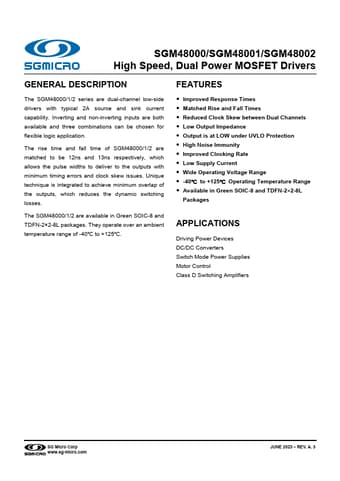

Preview of SGM48000 PDF

Datasheet Details

Part number:

SGM48000

Manufacturer:

SG Micro

File Size:

592.25 KB

Description:

Dual power mosfet drivers.
