SGM4890

1.1W Audio Power Amplifier

SGM4890 Features

* Supply Voltage Range: 2.5V to 5.5V

* 1.1W into 8Ω BTL Load from 5V Power Supply at THD+N = 1% (Typical, per Channel)

* Shutdown Current: 0.01μA (TYP)

* High PSRR

* Fast Turn-On Time

* Unity-Gain Stable

* Thermal Shutdown Protection

* -40℃ to +85℃ Operating Temperatu

SGM4890 General Description

The SGM4890 is a fully-integrated audio power amplifier which operates from 2.5V to 5.5V supply voltage. It can deliver 1.1W into an 8Ω BTL load from 5V supply at THD+N = 1%. It is designed for portable application that needs low-component count. The SGM4890 has a low power consumption shutdown mode.

SGM4890 Datasheet (1.40 MB)

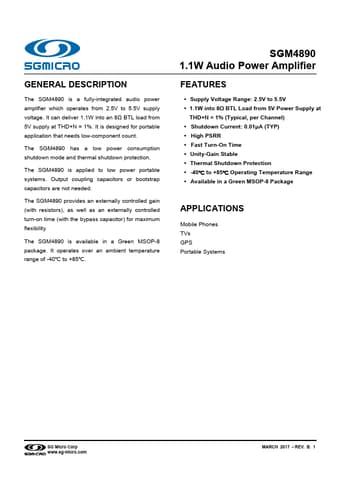

Preview of SGM4890 PDF

Datasheet Details

Part number:

SGM4890

Manufacturer:

Shengbang Microelectronics

File Size:

1.40 MB

Description:

1.1w audio power amplifier.
