SGM48001, SGM48000 - Dual Power MOSFET Drivers

SG Micro

📥 Download Datasheet

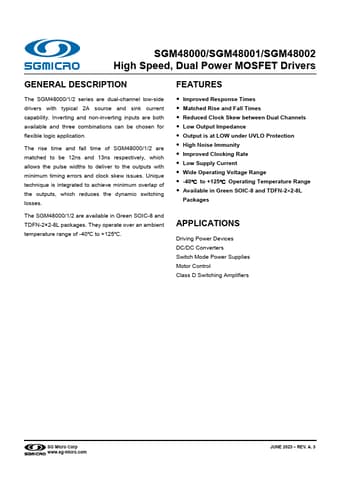

SGM48001 Datasheet Preview — This datasheet PDF includes multiple part numbers: SGM48001, SGM48000. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SGM48001, SGM48000
Manufacturer	SG Micro
File Size	592.25 KB
Description	Dual Power MOSFET Drivers
Datasheet	SGM48000-SGMicro.pdf
Note	This datasheet PDF includes multiple part numbers: SGM48001, SGM48000. Please refer to the document for exact specifications by model.

SGM48001 Product details

Description

The SGM48000/1/2 series are dual-channel low-side drivers with typical 2A source and sink current capability.

Features

Improved Response Times.
Matched Rise and Fall Times.
Reduced Clock Skew between Dual Channels.
Low Output Impedance.
Output is at LOW under UVLO Protection.
High Noise Immunity.
Improved Clocking Rate.
Low Supply Current.
Wide Operating Voltage Range.
-40℃ to +125℃ Operating Temperature Range.
Available in Green SOIC-8 and TDFN-2×2-8L Packages.
