SGM7SZ125

Small Logic Buffer

SGM7SZ125 Features

* Wide Supply Voltage Range: 1.65V to 5.5V

* Ultra-High Speed: tPD of 3.5ns (TYP) into 50pF at VCC = 3.3V

* Support LCX Performance at VCC = 3.3V

* High Output Drive: ±24mA at VCC = 3V

* Inputs Over-Voltage Tolerance Makes 5V to 3V Translation Available

* Power Down High-Impe

SGM7SZ125 General Description

The SGM7SZ125 is a single buffer with three-state output with advanced CMOS technology. The supply voltage pin of this device accepts any voltage from 1.65V to 5.5V. The inputs can tolerate a maximum of 6V, regardless of the supply voltage range. When VCC is at 0V, the inputs and output are in the h.

SGM7SZ125 Datasheet (612.00 KB)

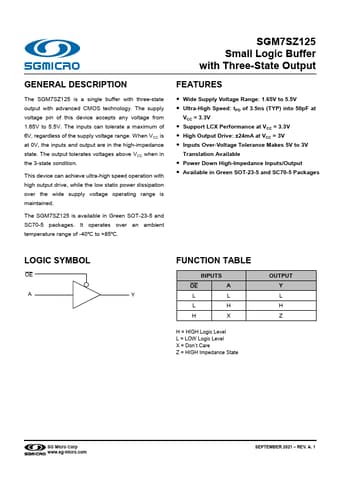

Preview of SGM7SZ125 PDF

Datasheet Details

Part number:

SGM7SZ125

Manufacturer:

SG Micro

File Size:

612.00 KB

Description:

Small logic buffer.
