SGM7SZ19 Datasheet - SG Micro

SGM7SZ19 Small Logic 1-of-2 Decoder/Demultiplexer

The SGM7SZ19 is a 1-of-2 decoder with a common output enable through advanced CMOS technology. The supply voltage pin of this device accepts any voltage from 1.65V to 5.5V. The inputs can tolerate a maximum of 6V, regardless of the supply voltage range. When VCC is at 0V, the inputs and output are i.

SGM7SZ19 Features

* Wide Supply Voltage Range: 1.65V to 5.5V

* Ultra-High Speed: tPD of 3.7ns (TYP) into 50pF at VCC = 3.3V

* Support LCX Performance at VCC = 3.3V

* High Output Drive: ±24mA at VCC = 3V

* Inputs Over-Voltage Tolerance Makes 5V to 3V Translation Available

* Power Down High-Impe

SGM7SZ19 Datasheet (565.67 KB)

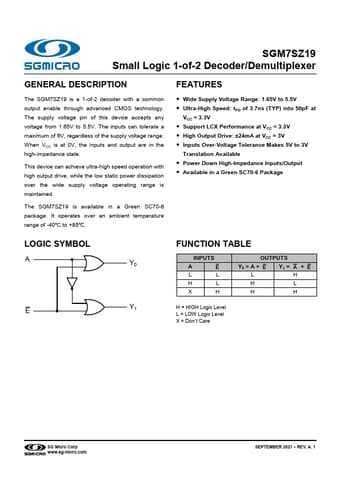

Preview of SGM7SZ19 PDF

Datasheet Details

Part number:

SGM7SZ19

Manufacturer:

SG Micro

File Size:

565.67 KB

Description:

Small logic 1-of-2 decoder/demultiplexer.
