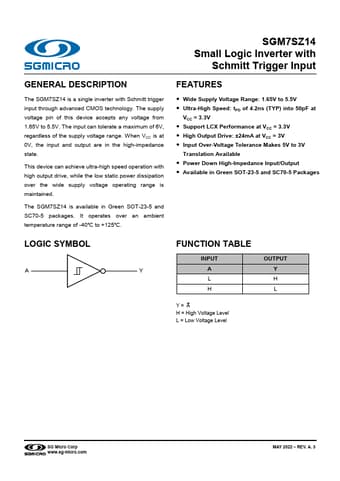

SGM7SZ14 Datasheet (SG Micro) - Small Logic Inverter

SGM7SZ14, Small Logic Inverter

The SGM7SZ14 is a single inverter with Schmitt trigger input through advanced CMOS technology.

The supply voltage pin of this device accepts any voltage from 1.65V to 5.5V.

The input can tolerate a maximum of 6V, regardless of the supply voltage range.

When VCC is at 0V, the input and output are in

SGM7SZ14 Features

* Wide Supply Voltage Range: 1.65V to 5.5V

* Ultra-High Speed: tPD of 4.2ns (TYP) into 50pF at VCC = 3.3V

* Support LCX Performance at VCC = 3.3V

* High Output Drive: ±24mA at VCC = 3V

* Input Over-Voltage Tolerance Makes 5V to 3V Translation Available

* Power Down High-Imped
