SW5123 RF front-end chip

SW5123 2016 04 V1.0 2.4GHz ：2.1 mA；（）：1.70 dB；（）：12.0 dB；（）：1.40 dB； 1dB （）：+13.5 dBm； PCB ，； 50 ; ：1.6V~2.0V; ：2.4~2.5 GHz; 1.1mmX0.7mmX 0.5mm DFN 6L 2kV HBM （ RFIN RFOUT ）、、、 ISM BLUETOOTH 4.2/BLE ISM SW5123 BLUETOOTH 4.2/BLUETOOTH LOW ENERGY 。，, ,。 SW5123 ，，，， 1.6V 2.0V 。 SW5123 ISM ，，，， ISM 。。 SW5123 1.1mm x 0.7 mm x 0.5 mm DFN-6L ， -40℃ 85℃。 1. SW5123 2.4GHz.

SW5123 Features

* Ultra-low power with current 2.1 mA;

* Ultra low noise figure(Rx)=1.70 dB;

* High power gain(Rx)=12.0 dB;

* Low insertion loss(Tx)=1.40 dB;

* High input 1dB-compression point (Tx) = +13.5 dBm;

* Requires only one input matching in- ductor;

* RF output internally matched

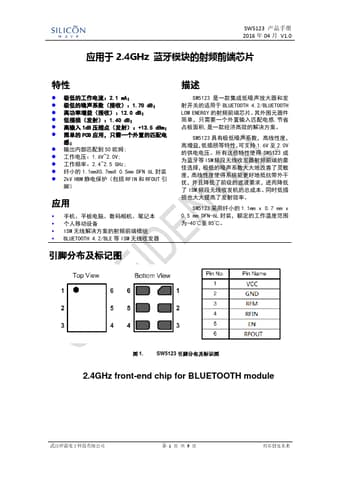

SW5123 Datasheet (840.44 KB)

SW5123 Datasheet Preview — Preview of SW5123 PDF

Datasheet Details

Part number:

SW5123

Manufacturer:

SILICON wave

File Size:

840.44 KB

Description:

Rf front-end chip.
