SW50CPF06

Diode

SW50CPF06 Features

* Ultrafast recovery time

* Low forward voltage drop

* 150 °C operating junction temperature

* Low leakage current

* Designed and qualified according to JEDEC-JESD47 TO-3P 12 3 1. Anode 2. Gathode 3. Anode VR : 620V IF(AV) : 50A VF at IF : 1.5V General Description This FRED is

SW50CPF06 General Description

This FRED is designed with optimized performance of forward voltage drop and ultrafast recovery time. the platinum doped life time control, guarantee the best overall performance ruggedness and reliability characteristics. This devices are intended for use in the output rectification stage of SMPS, .

SW50CPF06 Datasheet (604.24 KB)

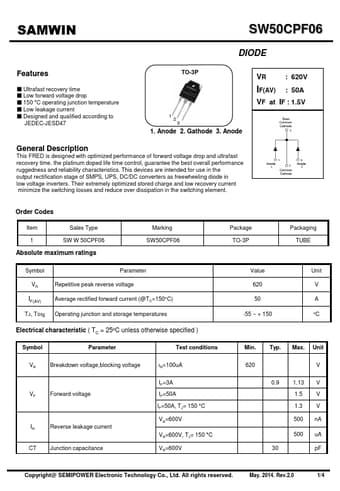

Preview of SW50CPF06 PDF

Datasheet Details

Part number:

SW50CPF06

Manufacturer:

SEMIPOWER

File Size:

604.24 KB

Description:

Diode.
