SW50N06T

MOSFET

SW50N06T Features

* High ruggedness

* RDS(ON) (Max 16.8mΩ)@VGS=10V

* Gate Charge (Typ 41nC)

* Improved dv/dt Capability

* 100% Avalanche Tested TO-252 TO-220 1 2 3 12 3 BVDSS : 60V ID : 50A RDS(ON) : 16.8mΩ 2 1. Gate 2. Drain 3. Source General Description This power MOSFET is produced with a

SW50N06T General Description

This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteristics, such as fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics. It is mainly suitable for half bridge or ful.

SW50N06T Datasheet (707.68 KB)

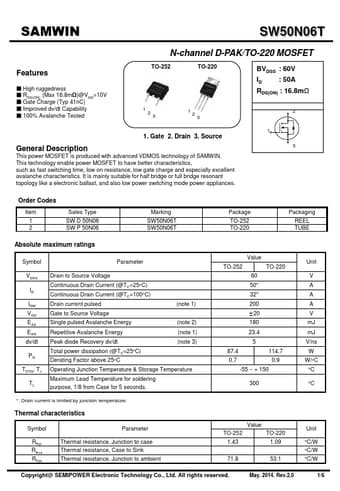

Preview of SW50N06T PDF

Datasheet Details

Part number:

SW50N06T

Manufacturer:

SEMIPOWER

File Size:

707.68 KB

Description:

Mosfet.
