SW50N06

N-Channel MOSFET

SW50N06 Features

* N-Channel MOSFET BVDSS (Minimum) RDS(ON) (Maximum) ID Qg (Typical) PD (@TC=25 ) : 60 V : 0.023ohm : 50 A : 30 nc : 130 W SW50N06 General Description This power MOSFET is produced in CHMC with advanced VDMOS process, planar stripe. This technology enable power MOSFET to have better characteristics,

SW50N06 General Description

This power MOSFET is produced in CHMC with advanced VDMOS process, planar stripe. This technology enable power MOSFET to have better characteristics, such as fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics. It is mainly suitable for half bri.

SW50N06 Datasheet (378.61 KB)

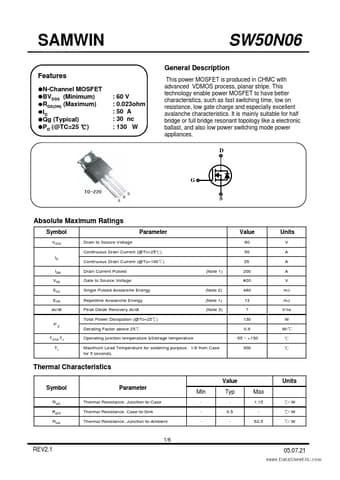

Preview of SW50N06 PDF

Datasheet Details

Part number:

SW50N06

Manufacturer:

Sammwin

File Size:

378.61 KB

Description:

N-channel mosfet.
