SW50N10

MOSFET

SW50N10 Features

* TO-220

* High ruggedness

* RDS(ON) (Max17mΩ)@VGS=10V

* Gate Charge (Typical 82nC)

* Improved dv/dt Capability

* 100% Avalanche Tested 12 3 1. Gate 2. Drain 3. Source General Description This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology en

SW50N10 General Description

This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteristics, such as fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics. This power MOSFET is usually used at high ef.

SW50N10 Datasheet (709.43 KB)

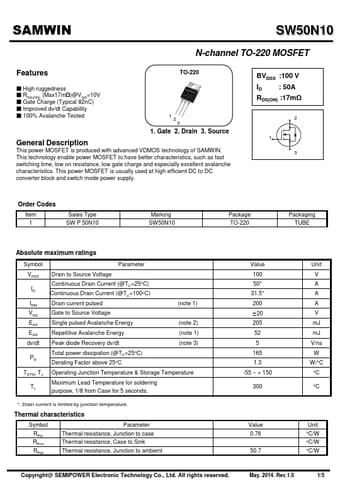

Preview of SW50N10 PDF

Datasheet Details

Part number:

SW50N10

Manufacturer:

SEMIPOWER

File Size:

709.43 KB

Description:

Mosfet.
