FDC3400 - Floppy Disk Hard Sector Data Handler

FDC3400 Description

STANDARD MICROSYSTEMS CORPORATI~ON~_ _i i FDC3400 ILPC FAMILY Floppy Disk Hard Sector Data Handler HSDH .
The FDC3400 is an MOS integrated circuit which simplifies the data interface between a processor and a floppy disk drive.

FDC3400 Features

* o Hard-Sectored Operation - performs all data operations o Single or Double Density Operation- recording code independent o Minifloppy or Standard Floppy compatible o Programmable Sync Byte o Internal Sync Byte Detection and Byte Framing o Fully Double Buffered o Data Overrun/Underrun Detection o Du

FDC3400 Applications

* such as the end of a logical file, the system buffer may contain less than a full sector of data. In this case the processor need supply only this data to the FDC3400. The FDC3400 will then underrun, setting the Write Data Underrun Status line and thereby causing the remainder of the sector to fill

📥 Download Datasheet

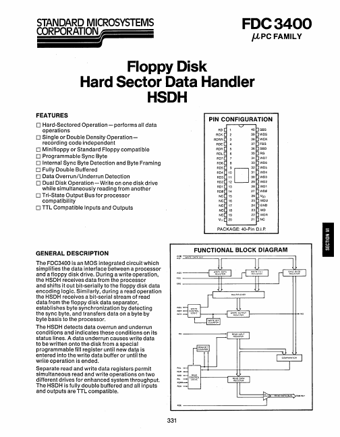

Preview of FDC3400 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FDC3400
Manufacturer
SMSC
File Size
313.08 KB
Datasheet
FDC3400-SMSC.pdf
Description
Floppy Disk Hard Sector Data Handler
