Datasheet Details
- Part number
- FDC3512
- Manufacturer
- Fairchild Semiconductor
- File Size
- 133.26 KB
- Datasheet
- FDC3512_FairchildSemiconductor.pdf
- Description
- N-Channel MOSFET
FDC3512 Description

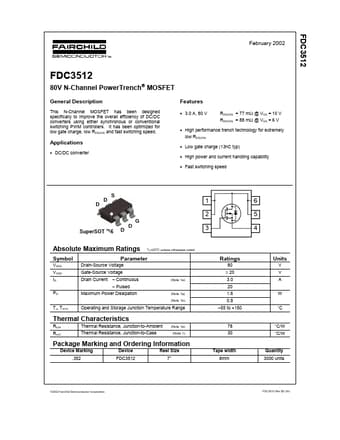

FDC3512 February 2002 FDC3512 80V N-Channel PowerTrench MOSFET General .
This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional sw.
FDC3512 Applications
* DC/DC converter
* High performance trench technology for extremely low RDS(ON)
* Low gate charge (13nC typ)
* High power and current handling capability
* Fast switching speed
D
D
S
1 2
G
6 5 4
SuperSOT TM -6
D
D
3
Absolute Maximum Ratings
Symbol
