SN67D03B - One Channel Direct Drive Speech Controller

SONiX Technology

SN67D03B Datasheet Preview — Preview of SN67D03B PDF

Datasheet Details

Part number	SN67D03B
Manufacturer	SONiX Technology
File Size	241.63 KB
Description	One Channel Direct Drive Speech Controller
Datasheet	SN67D03B_SONiXTechnology.pdf

SN67D03B Product details

Description

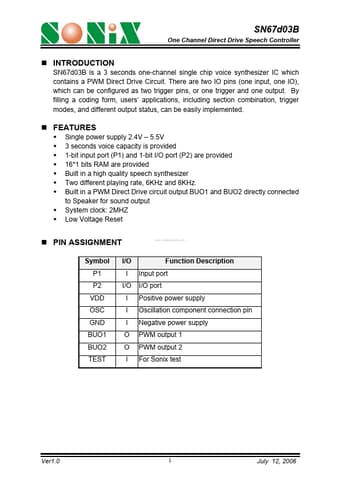

Input port I/O port Positive power supply Oscillation component connection pin Negative power supply PWM output 1 PWM output 2 For Sonix test Ver1.0 1 July 12, 2006 SN67d03B One Channel Direct Drive Speech Controller ABSOLUTE MAXIMUM RATINGS Items Supply Voltage Input Voltage Operating Temperature Storage Temperature Symbol VDD-V VIN TOP TSTG Min -0.3 GND-0.3 -20.0 -55.0 Max 6.0 VDD+0.3 70.0 125.0 Unit.V V o o C C ELECTRICAL CHARACTERISTICS Item Sym.Min.Typ.Max.Unit Condition Operati

Features

Single power supply 2.4V.
5.5V 3 seconds voice capacity is provided 1-bit input port (P1) and 1-bit I/O port (P2) are provided 16.
1 bits RAM are provided Built in a high quality speech synthesizer Two different playing rate, 6KHz and 8KHz. Built in a PWM Direct Drive circuit output BUO1 and BUO2 directly connected to Speaker for sound output System clock: 2MHZ Low Voltage Reset PIN.
