SN67D07B Datasheet (SONiX) - One Channel Direct Drive Speech Controller

SN67D07B, One Channel Direct Drive Speech Controller

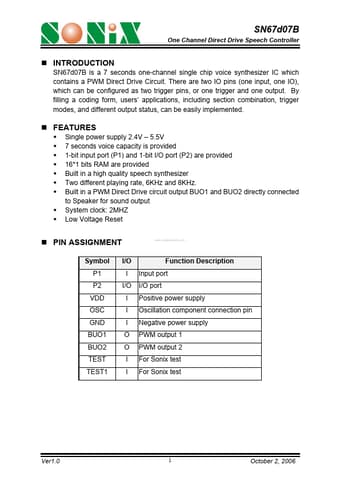

Input port I/O port Positive power supply Oscillation component connection pin Negative power supply PWM output 1 PWM output 2 For Sonix test For Sonix test Ver1.0 1 October 2, 2006 SN67d07B One Channel Direct Drive Speech Controller * ABSOLUTE MAXIMUM RATINGS Items Supply Voltage Input

SN67D07B Features

* Single power supply 2.4V

* 5.5V 7 seconds voice capacity is provided 1-bit input port (P1) and 1-bit I/O port (P2) are provided 16

* 1 bits RAM are provided Built in a high quality speech synthesizer Two different playing rate, 6KHz and
