SN67009

Speech Controller

SN67009 Features

* Single power supply 2.4V - 5.1V Built in a tiny controller 9 seconds voice capacity are provided One 4-bit input port and two 4-bit I/O pins are provided 64

* 4 bits RAM are provided Maximum 16k program ROM is provided Readable ROM

SN67009 General Description

Bit0 of input port 1 Bit1 of input port 1 Bit2 of input port 1 Bit3 of input port 1 Bit0 of I/O port 2 Bit1 of I/O port 2 Bit2 of I/O port 2 Bit3 of I/O port 2 Bit0 of I/O port 3 Bit1 of I/O port 3 Bit2 of I/O port 3 Bit3 of I/O port 3 Positive power supply Oscillation component connection pin For t.

SN67009 Datasheet (103.45 KB)

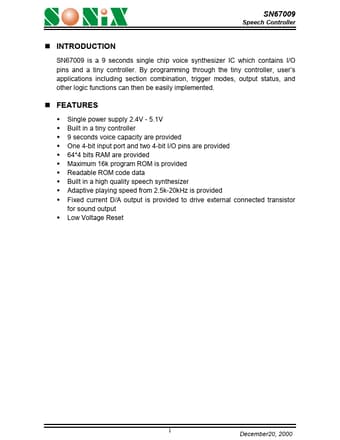

Preview of SN67009 PDF

Datasheet Details

Part number:

SN67009

Manufacturer:

SONiX Technology Company

File Size:

103.45 KB

Description:

Speech controller.
SN67009 Speech Controller

* INTRODUCTION SN67009 is a 9 seconds single chip voice synthesizer IC which contains I/O pins and a tiny controlle.
