SN67D03 One Channel Direct Drive Speech Controller

SN67D03 Description

SN67d03 One Channel Direct Drive Speech Controller * INTRODUCTION SN67d03 Series is a 3 seconds one-channel single chip voice synthesizer IC .
Input port I/O port Positive power supply Oscillation component connection pin Negative power supply PWM output 1 PWM output 2 1 September 7, 2001.

SN67D03 Features

* Single power supply 2.4V
* 5.1V 3 seconds voice capacity is provided 1-bit input port (P1) and 1-bit I/O port (P2) are provided 16
* 1 bits RAM are provided Built in a high quality speech synthesizer Two different playing rate, 6KHz and

SN67D03 Applications

* including section combination, trigger modes, and different output status, can be easily implemented.

📥 Download Datasheet

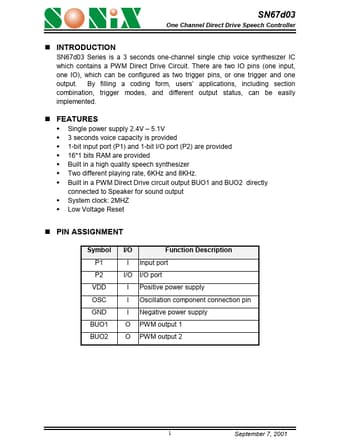

Preview of SN67D03 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SN67D03
Manufacturer
SONiX Technology Company
File Size
111.89 KB
Datasheet
SN67D03_SONiXTechnologyCompany.pdf
Description
One Channel Direct Drive Speech Controller
