SN67D10 One Channel Direct Drive Speech Controller

SN67D10 Description

SN67d10 One Channel Direct Drive Speech Controller * INTRODUCTION SN67d10 Series is a 10 seconds one-channel single chip voice synthesizer IC.
Input port I/O port Positive power supply Oscillation component connection pin Negative power supply PWM output 1 PWM output 2 Preliminary 1 Octobe.

SN67D10 Features

* Single power supply 2.4V
* 5.1V 10 seconds voice capacity is provided 1-bit input port (P1) and 1-bit I/O port (P2) are provided 16
* 1 bits RAM are provided Built in a high quality speech synthesizer Two different playing rate, 6KHz an

SN67D10 Applications

* including section combination, trigger modes, and different output status, can be easily implemented.

📥 Download Datasheet

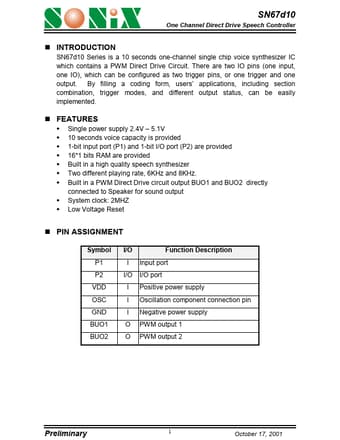

Preview of SN67D10 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SN67D10
Manufacturer
SONiX Technology Company
File Size
106.96 KB
Datasheet
SN67D10_SONiXTechnologyCompany.pdf
Description
One Channel Direct Drive Speech Controller
