S25FL116K, S25FL1-K CMOS 3.0-Volt Flash Non-Volatile Memory

S25FL116K Description

S25FL1-K S25FL116K * 16 Mbit (2 Mbyte) S25FL132K * 32 Mbit (4 Mbyte) S25FL164K * 64 Mbit (8 Mbyte) CMOS 3.0-Volt Flash Non-Vol.
of Spansion data sheet designations are presented here to highlight their presence and definitions.

S25FL116K Features

* Serial Peripheral Interface (SPI)
* SPI Clock polarity and phase modes 0 and 3
* Command subset and footprint compatible with S25FL-K
* Read
* Normal Read (Serial):
* 50 MHz clock rate (-40°C to +85°C/105°C)
* 45 MHz clock rate (-40°C to +125°C)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S25FL116K, S25FL1-K. Please refer to the document for exact specifications by model.

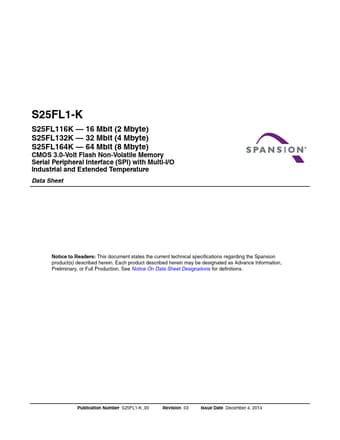

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S25FL116K, S25FL1-K
Manufacturer
SPANSION
File Size
1.25 MB
Datasheet
S25FL1-K-SPANSION.pdf
Description
CMOS 3.0-Volt Flash Non-Volatile Memory
Note
This datasheet PDF includes multiple part numbers: S25FL116K, S25FL1-K.
Please refer to the document for exact specifications by model.
