S25FL128S, S25FL256S Flash Non-Volatile Memory CMOS Core

S25FL128S Description

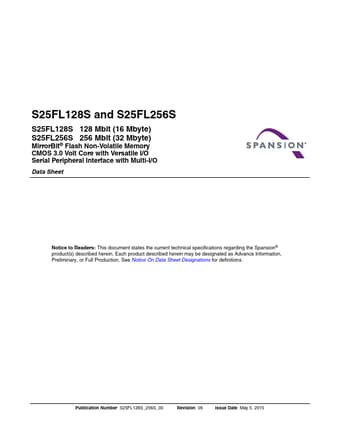

S25FL128S and S25FL256S S25FL128S 128 Mbit (16 Mbyte) S25FL256S 256 Mbit (32 Mbyte) MirrorBit® Flash Non-Volatile Memory CMOS 3.0 Volt Core with Versa.
of Spansion data sheet designations are presented here to highlight their presence and definitions.

S25FL128S Features

* Density
* 128 Mbits (16 Mbytes)
* 256 Mbits (32 Mbytes)
* Serial Peripheral Interface (SPI)
* SPI Clock polarity and phase modes 0 and 3
* Double Data Rate (DDR) option
* Extended Addressing: 24- or 32-bit address options
* Serial Command set

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S25FL128S, S25FL256S. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S25FL128S, S25FL256S
Manufacturer
SPANSION
File Size
3.98 MB
Datasheet
S25FL256S_SPANSION.pdf
Description
Flash Non-Volatile Memory CMOS Core
Note
This datasheet PDF includes multiple part numbers: S25FL128S, S25FL256S.
Please refer to the document for exact specifications by model.
