2N5677, 2N5291 Datasheet - SSDI

2N5677 PNP Transistor

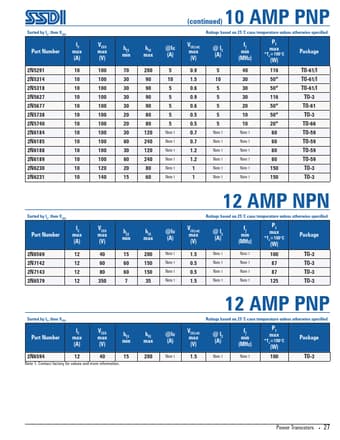

10 AMP PNP(continued) Sorted by IC, then VCEO Part Number mIaCx (A) mVCaExO (V) Ratings based on 25˚C case temperature unless otherwise specified mhFiEn mhaFEx @Ic (A) VmCEa(sxat) (V) @(A)IC mfTin (MHz) mPaTx TC=100°C (W) Package 2N5291 10 100 70 200 5 0.9 5 40 116 TO-61/I 2N5314 10 100 30 90 10 1.5 10 30 50 TO-61/I 2N5318 10 100 30 90 5 0.6 5 30 50 TO-61/I 2N5627 10 100 30 90 5 0.9 5 30 116 TO-3 2N5677 10 100 30 90 5 0.6 5 20 50 TO-6.

2N5291-SSDI.pdf

2N5677 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N5677, 2N5291. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2N5677, 2N5291

Manufacturer:

SSDI

File Size:

27.13 KB

Description:

Pnp transistor.

Note:

This datasheet PDF includes multiple part numbers: 2N5677, 2N5291.
Please refer to the document for exact specifications by model.
