SHF1101 Datasheet - SSDI

SHF1101 - (SHF1101 - SHF1201) HYPER FAST RECOVERY RECTIFIER

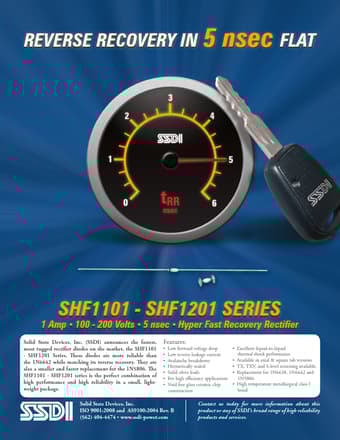

www.DataSheet.co.kr REVERSE RECOVERY IN 5 nsec FLAT 1 Amp ▪ 100 - 200 Volts ▪ 5 nsec ▪ Hyper Fast Recovery Rectifier Solid State Devices, Inc.

(SSDI) announces the fastest, most rugged rectifier diodes on the market, the SHF1101 - SHF1201 Series.

These diodes are more reliable than the 1N6642 while matching its reverse recovery.

They are also a smaller and faster replacement for the 1N5806.

The SHF1101 - SHF1201 series is the perfect combination of high performance and high reliability in a s

SHF1101 Features

* ▪▪ Low forward voltage drop ▪▪ Low reverse leakage current ▪▪ Avalanche breakdown ▪▪ Hermetically sealed ▪▪ Solid silver leads ▪▪ For high efficiency applications ▪▪ Void free glass ceramic chip construction ▪▪ Excellent liquid-to-liquid thermal shock performance ▪▪ Available in axial & square tab

SHF1101_SSDI.pdf

Preview of SHF1101 PDF
SHF1101 Datasheet Preview Page 2 SHF1101 Datasheet Preview Page 3

Datasheet Details

Part number:

SHF1101

Manufacturer:

SSDI

File Size:

1.60 MB

Description:

(shf1101 - shf1201) hyper fast recovery rectifier.
