SHF1104SMS, SHF1104, (SHF1104SMS - SHF1109SMS) Hyper Fast Rectifier

www.DataSheet4U.com Solid State Devices, Inc.14830 Valley View Blvd * La Mirada, Ca 90638 Phone: (562) 404-7855 * Fax: (562) 404-1773 ssdi@s.

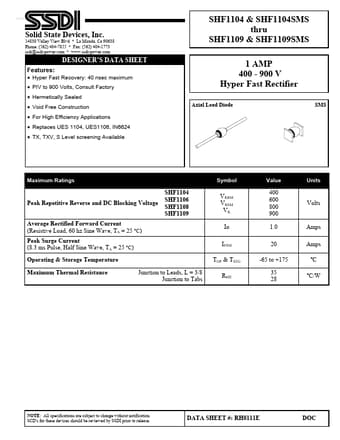

datasheet Preview Page 1 from Datasheet4u.com

SHF1104_SSDI.pdf

SHF1104SMS Datasheet Preview — This datasheet PDF includes multiple part numbers: SHF1104SMS, SHF1104. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SHF1104SMS, SHF1104

Manufacturer:

SSDI

File Size:

181.17 KB

Description:

(SHF1104SMS - SHF1109SMS) Hyper Fast Rectifier

Note:

This datasheet PDF includes multiple part numbers: SHF1104SMS, SHF1104.
Please refer to the document for exact specifications by model.

Features

* Hyper Fast Recovery: 40 nsec maximum
* PIV to 900 Volts, Consult Factory
* Hermetically Sealed
* Void Free Construction

Applications

* Replaces UES 1104, UES1106, IN6624
* TX, TXV, S Level screening Available Maximum Ratings Symbol Value Units Peak Repetitive Reverse and DC Blocking Voltage Average Rectified Forward Current (Resistive Load, 60 hz Sine Wave, TA = 25 °C) Peak Surge Current (8.3 ms Pulse, Half S
