SUM70F, SUM60F - (SUM60F - SUM90F) FAST RECOVERY RECTIFIER

SSDI

📥 Download Datasheet

SUM70F Datasheet Preview — This datasheet PDF includes multiple part numbers: SUM70F, SUM60F. Please refer to the document for exact specifications by model.

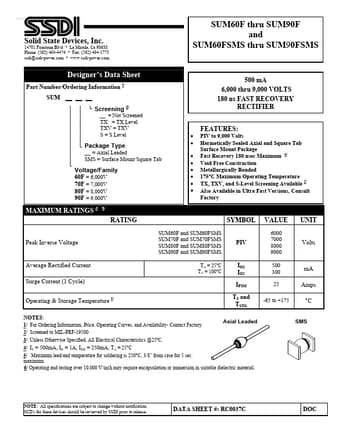

datasheet Preview Page 2

Datasheet Details

Part number	SUM70F, SUM60F
Manufacturer	SSDI
File Size	173.14 KB
Description	(SUM60F - SUM90F) FAST RECOVERY RECTIFIER
Datasheet	SUM60F_SSDI.pdf
Note	This datasheet PDF includes multiple part numbers: SUM70F, SUM60F. Please refer to the document for exact specifications by model.

SUM70F Product details

Features

PIV to 9,000 Volts Hermetically Sealed Axial and Square Tab Surface Mount Package Fast Recovery 180 nsec Maximum 4/ Void Free Construction Metallurgically Bonded 175°C Maximum Operating Temperature TX, TXV, and S-Level Screening Available 2/ Also Available in Ultra Fast Versions, Consult Factory.
Voltage/Family 60F = 6,000V 70F = 7,000V 80F = 8,000V 90F = 9,000V 6/.
