SUM70101EL P-Channel MOSFET

SUM70101EL Description

www.vishay.com SUM70101EL Vishay Siliconix P-Channel 100 V (D-S) 175 °C MOSFET TO-263 Top View S D G PRODUCT SUMMARY VDS (V) RDS(on) max.() at.

SUM70101EL Features

* TrenchFET® power MOSFET
* Package with low thermal resistance
* Maximum 175 ºC junction temperature
* Low RDS(on) minimizes power loss from conduction
* Compatible with logic-level gate driving
* 100 % Rg and UIS tested
* Material categorizat

SUM70101EL Applications

* Battery protection
* Motor drive control
* Load switch S G P-Channel MOSFET D ORDERING INFORMATION Package Lead (Pb)-free and halogen-free TO-263 SUM70101EL-GE3 ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-source voltage Gate-

📥 Download Datasheet

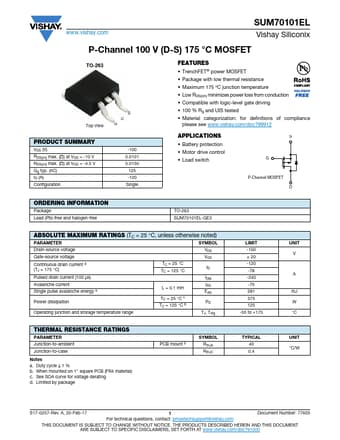

Preview of SUM70101EL PDF
