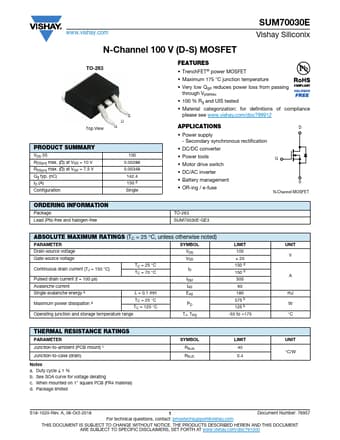

SUM70030E Datasheet, Mosfet, Vishay

SUM70030E Features

• Mosfet
• TrenchFET® power MOSFET
• Maximum 175 °C junction temperature
• Very low Qgd reduces power loss from passing through Vplateau
• 100 % Rg and UIS tested

PDF File Details

Part number:

SUM70030E

Manufacturer:

Vishay ↗

File Size:

139.90kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

SUM70030E Application

• Applications
• Power supply - Secondary synchronous rectification
• DC/DC converter
• Power tools
• Motor drive swit
