SUM70040E N-Channel MOSFET

SUM70040E Description

www.vishay.com SUM70040E Vishay Siliconix N-Channel 100 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () MAX.0.0040 at VGS = 10 V 100 0.0046 .

SUM70040E Features

* ThunderFET® power MOSFET
* Maximum 175 °C junction temperature
* 100 % Rg and UIS tested

SUM70040E Applications

* Power supply - Secondary synchronous rectification
* DC/DC converter
* Power tools
* Motor drive switch
* DC/AC inverter
* Battery management
* OR-ing D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PA

📥 Download Datasheet

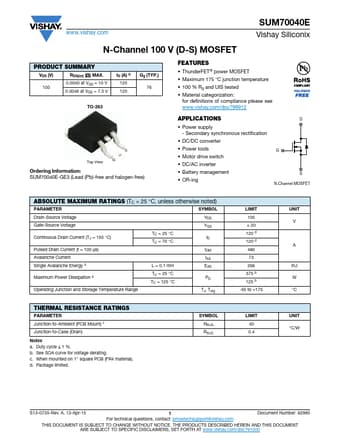

Preview of SUM70040E PDF
datasheet Preview Page 2 datasheet Preview Page 3
