SUM70060E N-Channel MOSFET

SUM70060E Description

www.vishay.com SUM70060E Vishay Siliconix N-Channel 100 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () MAX.0.0056 at VGS = 10 V 100 0.0062 .

SUM70060E Features

* ThunderFET® power MOSFET
* Maximum 175 °C junction temperature
* 100 % Rg and UIS tested

SUM70060E Applications

* D
* Power supplies: - Uninterruptible power supplies - AC/DC switch-mode power supplies - Lighting
* Synchronous rectification G
* DC/DC converter
* Motor drive switch
* DC/AC inverter S
* Battery management N-Channel MOSFET ABSOLUTE MA

📥 Download Datasheet

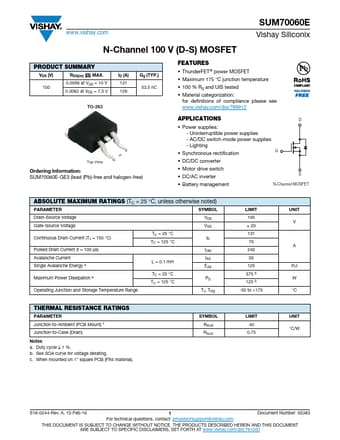

Preview of SUM70060E PDF
datasheet Preview Page 2 datasheet Preview Page 3
