SUM70040M N-Channel MOSFET

SUM70040M Description

www.vishay.com SUM70040M Vishay Siliconix N-Channel 100 V (D-S) MOSFET TO-263 7-Lead Drain conntected to tab Top View D SSS GSS PRODUCT SUMMARY .

SUM70040M Features

* ThunderFET® power MOSFET
* Maximum 175 °C junction temperature
* 100 % Rg and UIS tested

SUM70040M Applications

* Power supply - Secondary synchronous rectification
* DC/DC converter
* Power tools
* Motor drive switch
* DC/AC inverter
* Battery management
* OR-ing D G S N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-free TO-

📥 Download Datasheet

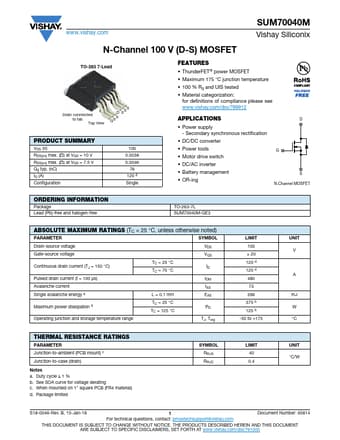

Preview of SUM70040M PDF
datasheet Preview Page 2 datasheet Preview Page 3
