SST13LP01 Dual-Band Power Amplifier

SST13LP01 Description

www.DataSheet4U.com 2.4-2.5 GHz / 4.9-5.8 GHz Dual-Band Power Amplifier SST13LP01 SST13LP012.4 GHz / 5 GHz Dual-Band Power Amplifier Preliminary Spe.
The SST13LP01 is a high-gain, high-performance, dualband power amplifier IC based on the highly-reliable InGaP/GaAs HBT technology.

SST13LP01 Features

* High Gain:
* Typically 28 dB gain across 2.4-2.5 GHz over temperature 0°C to +85°C
* Typically 30-33 dB gain across 4.9-5.8 GHz over temperature 0°C to +85°C
* High linear output power:
* >29 dBm P1dB across 2.4-2.5 GHz (Exceeding maximum rating of average

SST13LP01 Applications

* ~24%/250 mA @ POUT = 23 dBm for 802.11g
* ~23%/260 mA @ POUT = 23 dBm for 802.11b
* ~9.5%/320 mA @ POUT = 20 dBm for 802.11a
* Built-in Ultra-low IREF power-up/down control
* IREF

📥 Download Datasheet

Preview of SST13LP01 PDF

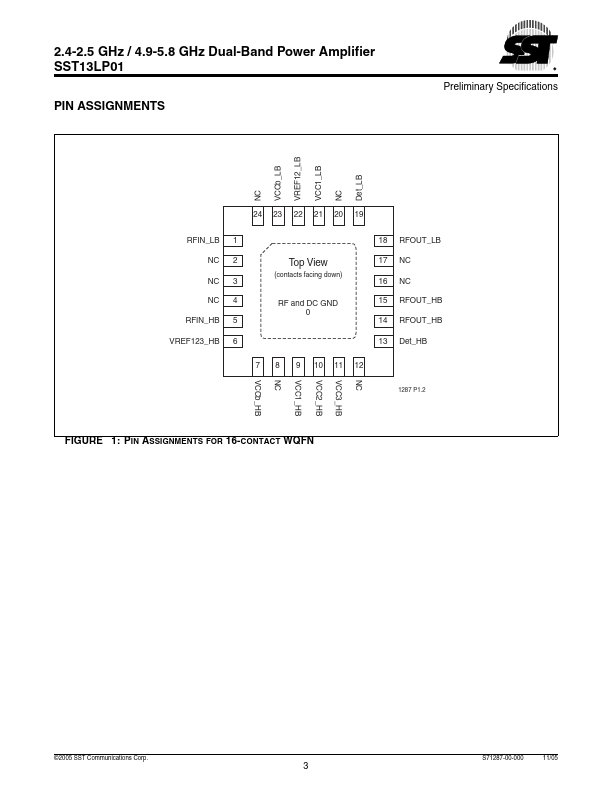

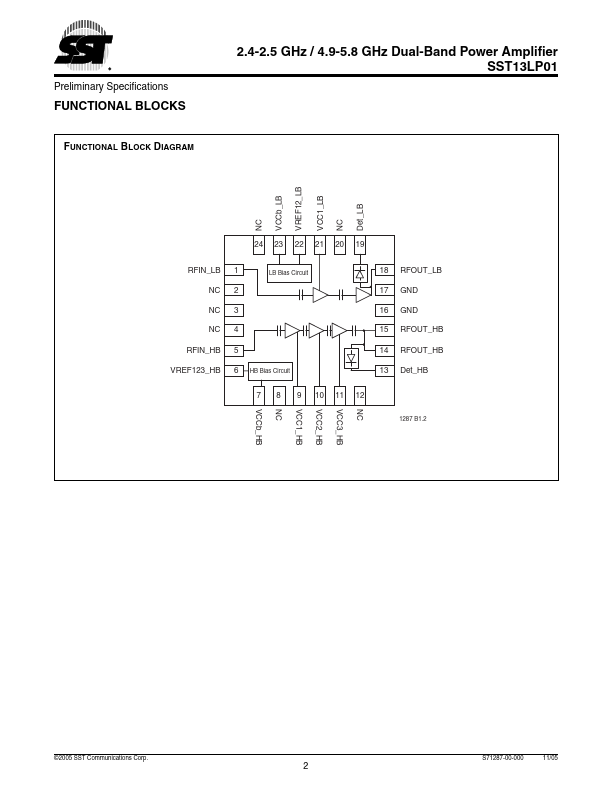

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SST13LP01
Manufacturer
SST
File Size
402.71 KB
Datasheet
SST13LP01_SST.pdf
Description
Dual-Band Power Amplifier
