SST13LP02 - Dual-Band Power Amplifier

SST

📥 Download Datasheet

SST13LP02 Datasheet Preview — Preview of SST13LP02 PDF

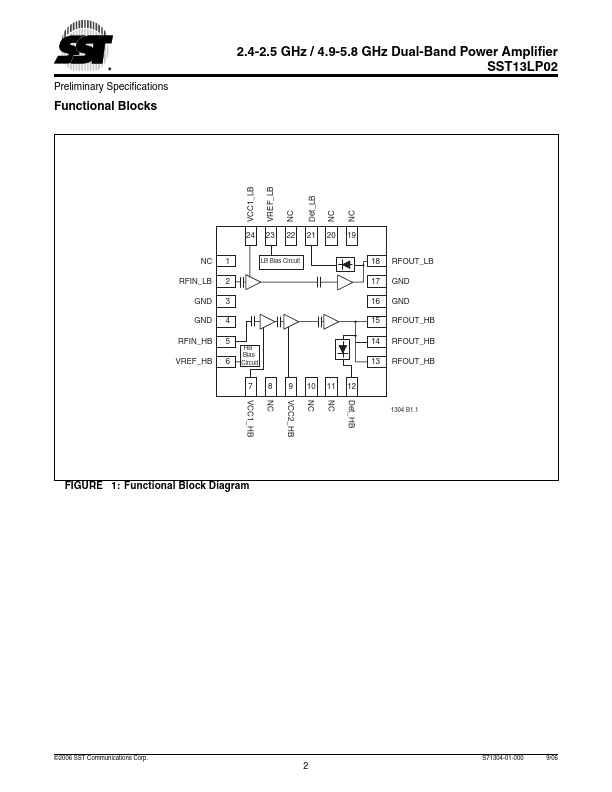

datasheet Preview Page 2

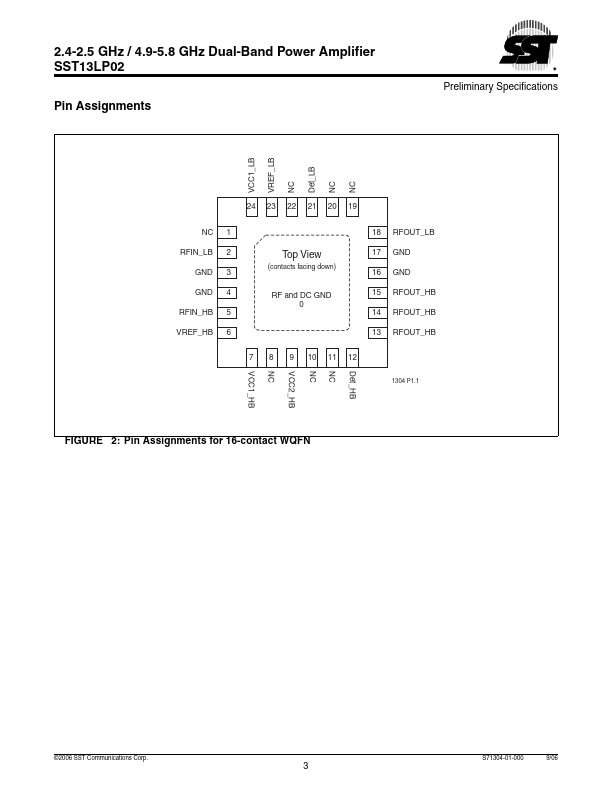

datasheet Preview Page 3

Datasheet Details

Part number	SST13LP02
Manufacturer	SST
File Size	658.16 KB
Description	Dual-Band Power Amplifier
Datasheet	SST13LP02_SST.pdf

SST13LP02 Product details

Description

The SST13LP02 is a high-efficiency, dual-band power amplifier based on the highly-reliable InGaP/GaAs HBT technology.

Features

High Gain:.
Typically 27-28 dB gain across 2.4-2.5 GHz.
Typically 30-34 dB gain across 4.9-5.8 GHz.
High linear output power:.
>25 dBm P1dB (Pulsed single-tone signal) across 2.4-2.5 GHz.
Meets 802.11b OFDM ACPR requirement up to 21.5 dBm across 2.4-2.5 GHz.
Meets 802.11g OFDM ACPR requirement up to 22 dBm across 2.4-2.5 GHz.
Added EVM~4% up to 19 dBm for 54 Mbps 802.11g signal across 2.4-2.5 GHz.
>25 dBm P1dB (Pu.
