BU508AF Datasheet - ST Microelectronics

BU508AF High voltage NPN Power transistor

The BU508AF is manufactured using Diffused Collector in Planar Technology adopting new and enhanced high voltage structure for updated performance to the Horizontal Deflection stage. Order codes Part Number BU508AF Marking BU508AF Package ISOWATT218FX Packaging Tube March 2007 Rev 1 1/8 www.st.c.

BU508AF Features

* State-of-the-art technology:

* Diffused collector “Enhanced generation” Stable performances versus operating temperature variation Low base-drive requirement Tight hFE range at operating collector current High ruggedness Fully insulated power packag

BU508AF Datasheet (122.96 KB)

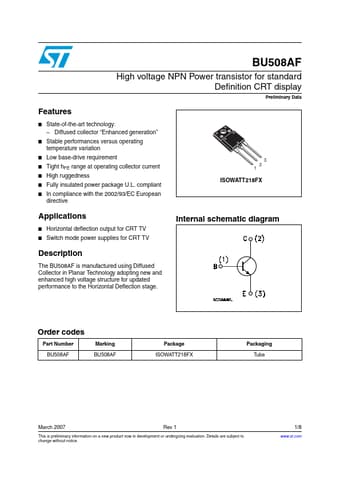

Preview of BU508AF PDF
BU508AF Datasheet Preview Page 2 BU508AF Datasheet Preview Page 3

Datasheet Details

Part number:

BU508AF

Manufacturer:

STMicroelectronics ↗

File Size:

122.96 KB

Description:

High voltage npn power transistor.
